MECHANICAL BOOSTER VACUUM PUMP(SMB series)
Mechanical Booster Pump
The ideal vacuum pump for use in vacuum systems in combination with a booster pump to increase the suction capacity.
- High degree of vacuum and high quality- It meets with the requirements for both voluminous pumping speed of air and high degree of vacuum for operation so as to boost productivity and stabilize product quality.
- Shortened operating time- While the system maintains high degree of vacuum status, it is capable of accelerated pumping speed so as to shorten the time for displacement of air that contributes greatly to productivity of facilities.
- Saving of energy- Total HP of a combined vacuum pumping system is about 40~50% conventional pumping system, so that is assures saving of energy permanently.
- Compact dimensions and simplified operation-vacuum system are characterized by rigid structure, elegant appearance, compact size, plus easy maintenance.
Water-Cooled Model Specifications
|
型式 Model |
抽氣速度Suction Capacity m3/h |
最大允許壓差 Max.Permissible Pressure Difference Torr |
馬力 Motor Power Kw |
轉速Speed rmp |
潤滑油量 Lubricating Oil L |
最小冷卻水量 Minimum Cooling Water L/min |
吸入口徑 Inlet Diameter mm |
排出口徑 Outlet Diameter mm |
重量 Weight Kg |
|

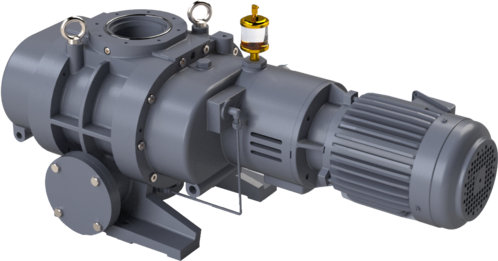

SMB-601W |
580 |
60 |
2.2/3.7 |
3000 |
1.2 |
3 |
VG100 |
VF80 |
160 |
|
700 |
3600 |
||||||||
|

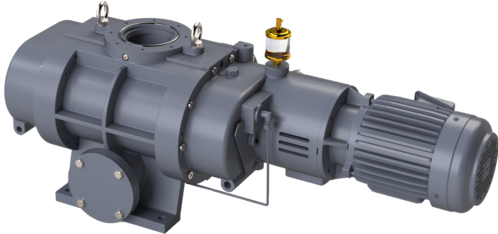

SMB-1001W |
1000 |
60 |
3.7/4 |
3000 |
1.2 |
3 |
VG100 |
VF80 |
240 |
|
1200 |
3600 |
||||||||
|
SMB-1501W |
1500 |
40 |
5.5/7.5 |
3000 |
1.5 |
3 |
VG150 |
VF100 |
270 |
|
1650 |
3600 |
||||||||
|

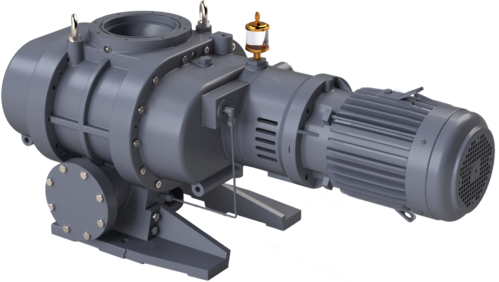

SMB-2501W |
2050 |
40 |
11 |
3000 |
2 |
3 |
VG200 |
VF150 |
400 |
|
2460 |
3600 |
Air-Cooled Model Specifications
|
型式 Model |
抽氣速度Suction Capacity m3/h |
最大允許壓差 Max.Permissible Pressure Difference Torr |
馬力 Motor Power Kw |
轉速Speed rmp |
潤滑油量 Lubricating Oil L |
吸入口徑 Inlet Diameter mm |
排出口徑 Outlet Diameter mm |
重量 Weight Kg |
|
SMB-151A |
153 |
60 |
1.1 |
3000 |
1.5 |
65 |
65 |
90 |
|
185 |
3600 |
|||||||
|
SMB-251A |
253 |
60 |
1.1 |
3000 |
1.5 |
65 |
65 |
100 |
|
305 |
3600 |
|||||||
|
SMB-501A |
505 |
60 |
2.2 |
3000 |
3 |
65 |
65 |
155 |
|
606 |
3600 |
|||||||
|
SMB-1001A |
1000 |
60 |
4 |
3000 |
5 |
100 |
100 |
233 |
|
1200 |
3600 |
Note: The ultimate pressure and pumping speed listed in the table above are obtained under factory test conditions. These parameters may vary depending on the type of foreline (backing) vacuum pump selected.
