ROTARY VANE VACUUM PUMP(RV SERIES)
1.The structure is designed for easy installation and maintenance.
2.Multi stage filtration system ensured minimum leakage (less 0.1%) of lube oil.
3.The pumps are driven by high efficiency induction motor with air-cooled system.
4.All components are processed under strict quality control. This ensured a quiet rotation and fast pumping speed.
5.The pumps are widely used in food processing, packaging, hospitals, thermoforming, printing, PCB testing, vacuum handling.
2.Multi stage filtration system ensured minimum leakage (less 0.1%) of lube oil.
3.The pumps are driven by high efficiency induction motor with air-cooled system.
4.All components are processed under strict quality control. This ensured a quiet rotation and fast pumping speed.
5.The pumps are widely used in food processing, packaging, hospitals, thermoforming, printing, PCB testing, vacuum handling.
|
Model |

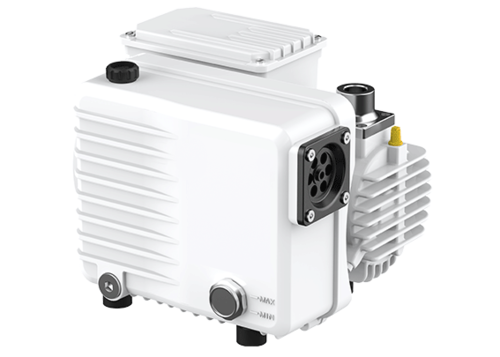

RV-020C |

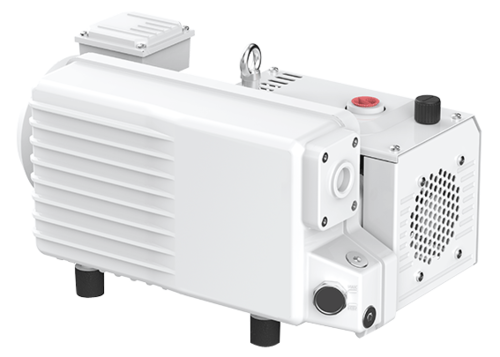

RV-022C |

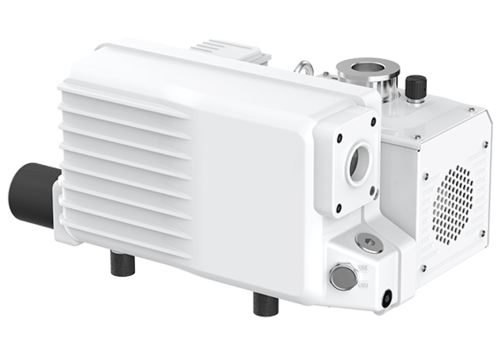

RV-040C |
RV-100C |

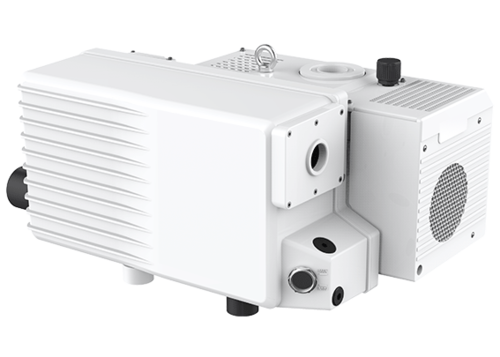

RV-200C |

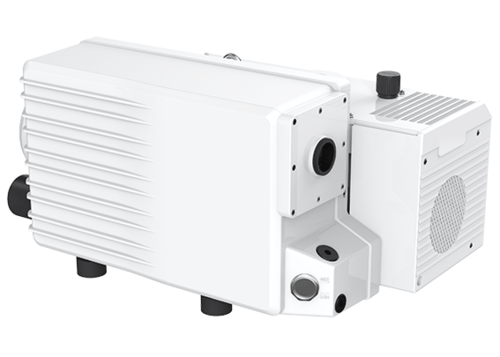

RV-300C |
|
|
Suction Capacity(m3/h) |
20/24 |
22/26 |
40/48 |
100/120 |
200/240 |
245/300 |
|
|
Ultimate Pressure (mbar) |
Without gas ballast |
/ |
≦0.3 |
≦0.3 |
≦0.3 |
≦8x10-2 |
≦8x10-2 |
|
Ultimate Total Pressure (mbar) |
Without gas ballast I |
≦1 |
≦0.8 |
≦0.8 |
≦0.8 |
≦0.5 |
≦0.5 |
|
Without gas ballast II |
/ |
≦2.5 |
≦2 |
≦3 |
≦1.5 |
≦1.5 |
|
|
Noise Level(dB) |
≦65 |
≦61 |
≦63 |
≦65 |
≦74 |
≦77 |
|
|
Power Supply |
Single/3-PH |
Single/3-PH |
3-Phase |
3-Phase |
3-Phase |
3-Phase |
|
|
Power Rating (kw) |
0.75/0.9 |
1.1 |
1.3 |
2.2/3.0 |
5.5/6.6 |
7.5/9 |
|
|
Motor Speed (50/60HZ) rpm |
2880/3450 |
1440/1720 |
1440/1720 |
1440/1720 |
1440/1720 |
1440/1720 |
|
|
Ambient temperature(℃) |
10-40 |
10-40 |
10-40 |
10-40 |
10-40 |
10-40 |
|
|
Oil Capacity (L) |
0.45 |
1 |
2.5 |
2.5 |
6.5 |
8 |
|
|
Level of Protection |
IP54 |
IP54 |
IP54 |
IP54 |
IP54 |
IP54 |
|
|
Intake and Exhaust |
G3/4" |
G3/4" |
G1 1/4" |
G1 1/4" |
G2" |
G2" |
|
|
Weight (Kg) |
19.5 |
30 |
39.2 |
72 |
164 |
215 |
|
|
(mm) Dimension(L*W*H) |
317*249*219 |
496*268*248 |
555*304*268 |
703*406*286 |
932*533*412 |
1035*540*434 |
|
