DWP series (in compact design)
Pressure Range：33~1013 mbar (25~760Torr)
Suction Capacity：6~258 m³/hr (0.1~4.3 m³/min)
FEATURES：
․Near isothermal compression
․No metallic contact of the rotating parts
․Oil free, with no internal lubrication
․Handling of nearly all gases and vapour
․Small quantities of entrained liquid can be handled
․Easy maintenance and reliable operation
․Low noise and nearly free from vibration
․Available in a wide range of materials
Suction Capacity：6~258 m³/hr (0.1~4.3 m³/min)
FEATURES：
․Near isothermal compression
․No metallic contact of the rotating parts
․Oil free, with no internal lubrication
․Handling of nearly all gases and vapour
․Small quantities of entrained liquid can be handled
․Easy maintenance and reliable operation
․Low noise and nearly free from vibration
․Available in a wide range of materials
|
Model |
Power |
Speed |
Suction Capacity (m3/min) |
Inlet/Outlet |
Water Supply |
||||
|
Model |
(Hp) |
(rpm) |
-700mmHg |
-660mmHg |
-600mmHg |
-500mmHg |
-400mmHg |
(inch) |
(L/min) |
|
(60Torr) |
(100Torr) |
(160Torr) |
(260Torr) |
(360Torr) |
|||||
|
DWP-1/2 |
0.5 |
2800 |
0.05 |
0.1 |
0.11 |
0.115 |
0.116 |
1 |
4 |
|
3400 |
0.06 |
0.18 |
0.135 |
0.14 |
0.14 |
||||
|
DWP-1 |
1 |
2800 |
0.11 |
0.25 |
0.28 |
0.29 |
0.29 |
1 |
5 |
|
3400 |
0.15 |
0.3 |
0.33 |
0.35 |
0.36 |
||||
|
DWP-2 |
2 |
2800 |
0.35 |
0.44 |
0.46 |
0.47 |
0.48 |
1 |
5 |
|
3400 |
0.4 |
0.54 |
0.56 |
0.58 |
0.6 |
||||
|
DWP-3 |
3 |
2800 |
0.48 |
0.8 |
1 |
1 |
1.1 |
1 |
6 |
|
3400 |
0.57 |
0.97 |
1.2 |
1.26 |
1.3 |
||||
|
DWP-5 |
5 |
1450 |
1.6 |
1.7 |
1.75 |
1.77 |
1.78 |
1 1/2 |
15 |
|
1750 |
1.85 |
2.1 |
2.1 |
2.12 |
2.16 |
||||
|
DWP-7 |
7.5 |
1450 |
1.73 |
2.2 |
2.4 |
2.5 |
2.6 |
1 1/2 |
17 |
|
1750 |
2 |
2.7 |
2.9 |
3.1 |
3.2 |
||||
|
DWP-10 |
10 |
1450 |
2.1 |
2.9 |
3.3 |
3.4 |
3.5 |
2 |
20 |
|
1750 |
2.4 |
3.5 |
4 |
4.2 |
4.3 |
||||
|

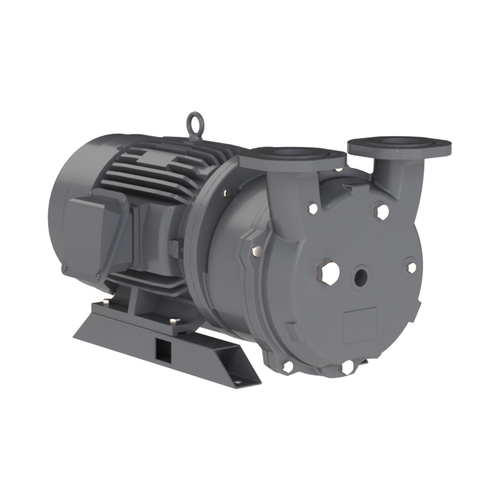

DWP-15 |
15 |
1450 |
3.95 |
4.6 |
4.72 |
4.62 |
4.48 |
2 1/2 |
30 |
|
1750 |
4.5 |
5.5 |
5.73 |
5.7 |
5.5 |
||||
|
＊Vacuum Pump is indicated on the basis as follow: Suction Air Temperature : 20℃ Discharge Pressure : 1 atm Sealing Liquid Temperature : 15℃ |
DWP-1/2~DWP-1
型號/ Model：DWP-1/2~DWP-1
排氣量/ Suction Capacity：0.14 m3/min~0.36 m3/min
真空度/ Suction Pressure：40 Torr
輸出功率/ Output Power：1/2HP~1HP
排氣量/ Suction Capacity：0.14 m3/min~0.36 m3/min
真空度/ Suction Pressure：40 Torr
輸出功率/ Output Power：1/2HP~1HP
DWP-2~DWP-3
型號/ Model：DWP-2~DWP-3
排氣量/ Suction Capacity：0.6 m3/min~1.3 m3/min
真空度/ Suction Pressure：25 Torr
輸出功率/ Output Power：2HP~3HP
排氣量/ Suction Capacity：0.6 m3/min~1.3 m3/min
真空度/ Suction Pressure：25 Torr
輸出功率/ Output Power：2HP~3HP
DWP-5~DWP-10
型號/ Model：DWP-5~DWP-10
排氣量/ Suction Capacity：2.16 m3/min~4.3 m3/min
真空度/ Suction Pressure：25 Torr
輸出功率/ Output Power：5HP~10HP
排氣量/ Suction Capacity：2.16 m3/min~4.3 m3/min
真空度/ Suction Pressure：25 Torr
輸出功率/ Output Power：5HP~10HP
