WCV (Water Ring Vacuum Pump Compact version)
This model is particularly suitable for wafer dicing and grinding systems, CNC machining centers, and various automated equipment. It can maintain a stable vacuum level during long-term operation, ensuring process quality and yield.
Main features:
1. Integrated design with digital electronic control; compact size, refined appearance, and easy to move.

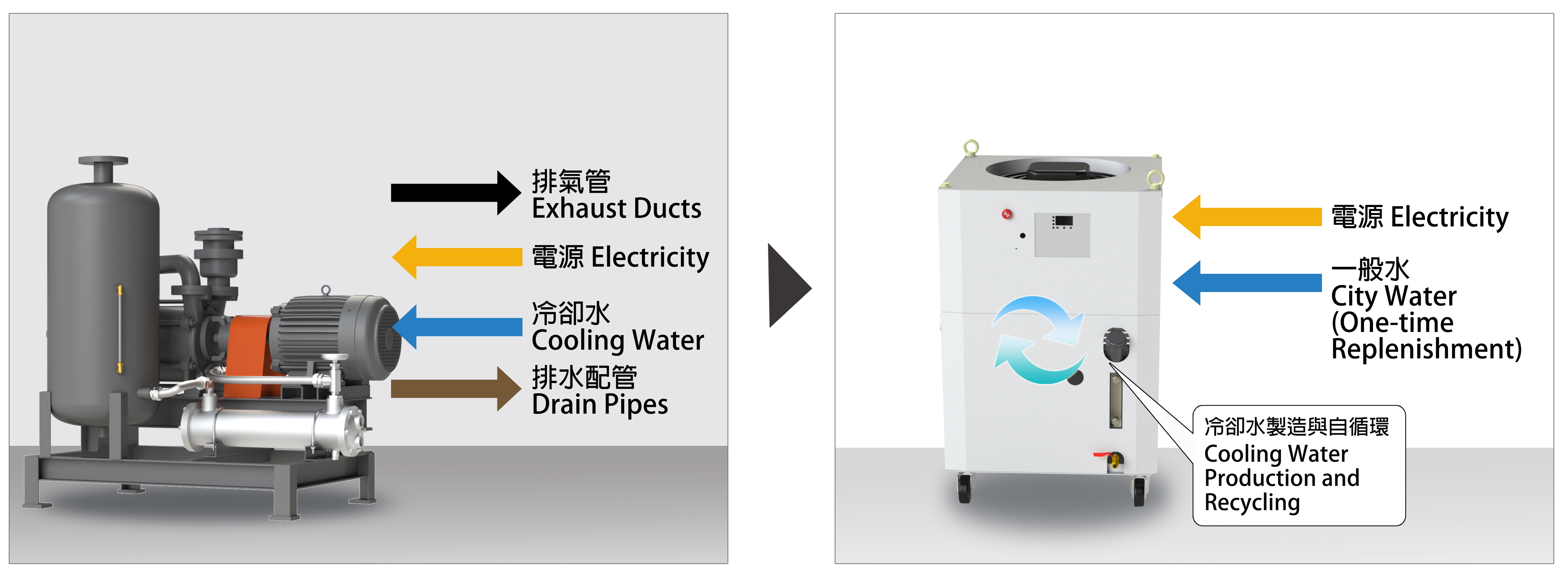

2. Patented self-circulating water-cooling design eliminates the need for external cooling water, ideal for locations where cooling water is not available.
3. Stable vacuum performance that does not deteriorate due to rising water temperature during operation.
4. Non-evaporative design with very low water consumption; only periodic refilling is required, and a low water level alarm is provided.
5. 100% oil-free design, contributing to environmental protection and clean processes.
6. Digital fault indication with clear and accurate alarm messages, allowing easy troubleshooting simply by following the displayed codes.
|
Model |
Suction Capacity |
Speed |
Ultimate Vacuum |
Inlet |
Weight |
Power |
|
WCV-1 |
290 L/min |
2800 rpm |
710 mmHG |
1" PT |
93KG |
0.75Kw |
|
360 L/min |
3400 rpm |
|||||
|
WCV-2 |
480 L/min |
2800 rpm |
730 mmHG |
1" PT |
103KG |
1.5Kw |
|
600 L/min |
3400 rpm |
|||||
|
WCV-3 |
1100 L/min |
2800 rpm |
730 mmHG |
1" PT |
105KG |
2.2Kw |
|
1300 L/min |
3400 rpm |
|||||
|
WCV-5 |
1780 L/min |
1450 rpm |
730 mmHG |
1 1/2" PT |
130KG |
3.7Kw |
|
2160 L/min |
1750 rpm |
|||||
|
WCV-7 |
2600 L/min |
1450 rpm |
730 mmHG |
1 1/2" PT |
170KG |
5.5Kw |
|
3200 L/min |
1750 rpm |
|||||
|
WCV-10 |
3500 L/min |
1450 rpm |
730 mmHG |
1 1/2" PT |
230KG |
7.5Kw |
|
4300 L/min |
1750 rpm |
