SW series (Single Stage)
Liquid Ring Single-Stage Vacuum Pump
Pressure Range: 80 to 1013 mbar (60 to 760 Torr)
Pumping Capacity: 18 to 2040 m³/h (0.31 to 34 m³/min)
Product Features:
- Near-isothermal compression
- Oil-free and internally lubricant-free
- Capable of handling nearly all gases and vapors
- Can handle small amounts of entrained liquids
- Low maintenance and operational safety
- Low noise, virtually vibration-free
- Available in multiple material options
Specifications:
The maximum vacuum of the single-stage type can reach 60 Torr, with an ideal operating pressure range of 160 to 760 Torr.
Test
conditions for the SW series vacuum pumps are as follows:
Inlet air temperature: 20°C
Outlet pressure: 1 atm
Seal liquid temperature: 15°C
|
Model |
Power (HP) |
Speed (rpm) |
Suction Capacity (m3/min) |
Inlet/ Outlet (inch) |
Water Supply (L/min) |
|
||||
|
-640mmHg |
-590mmHg |
-490mmHg |
-400mmHg |
|||||||
|
(120Torr) |
(170Torr) |
(270Torr) |
(360Torr) |
|||||||
|

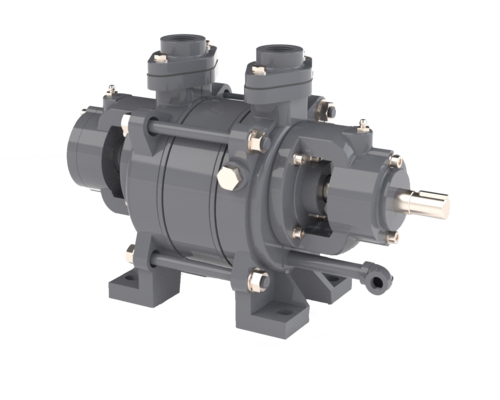

DW-1 |
1 |
2800 |
0.24 |
0.25 |
0.27 |
0.27 |
1 |
7 |
||
|
1 |
3400 |
0.29 |
0.32 |
0.33 |
0.33 |
|||||
|
DW-2 |
1 |
2800 |
0.38 |
0.46 |
0.5 |
0.53 |
1 |
8 |
||
|
2 |
3400 |
0.57 |
0.62 |
0.66 |
0.67 |
|||||
|
SW-3 |
3 |
1450 |
0.6 |
0.74 |
0.8 |
0.82 |
1 1/2 |
16 |
||
|
1750 |
0.68 |
0.82 |
0.9 |
0.91 |
||||||
|
SW-5 |
5 |
1450 |
1.4 |
1.6 |
1.7 |
1.73 |
2 |
18 |
||
|
1750 |
1.51 |
1.97 |
2.22 |
2.26 |
||||||
|
SW-7 |
7.5 |
1450 |
1.8 |
2.2 |
2.43 |
2.45 |
2 |
20 |
||
|
1750 |
1.88 |
2.71 |
3.1 |
3.1 |
||||||
|
SW-10 |
10 |
1450 |
2 |
2.5 |
2.75 |
2.8 |
2 |
25 |
||
|
1750 |
2.65 |
3.25 |
3.65 |
3.7 |
||||||
|
SW-10D |
7.5 |
1450 |
1.95 |
2.8 |
3.2 |
3.4 |
2 |
25 |
||
|
10 |
1750 |
2.7 |
3.6 |
3.9 |
4 |
|||||
|
SW-15 |
10 |
1450 |
4 |
4.8 |
5.2 |
5.6 |
2 |
40 |
||
|
15 |
1750 |
4.6 |
5.8 |
6.3 |
6.7 |
|||||
|
SW-25A |
20 |
1450 |
5.4 |
6.5 |
7.8 |
8 |
2 |
45 |
||
|
25 |
1750 |
6.5 |
7.8 |
9.3 |
9.7 |
|||||
|
SW-600 |
25 |
1450 |
8 |
8.5 |
8.9 |
9.2 |
3 |
27 |
||
|
30 |
1750 |
9 |
10 |
10.7 |
11 |
|||||
|
SW-700 |
25 |
1450 |
9 |
10.8 |
11.9 |
12.4 |
3 |
30 |
||
|
30 |
1650 |
10 |
12.5 |
13.7 |
14.3 |
|||||
|
40 |
1750 |
11 |
13 |
14.5 |
15 |
|||||
|
SW-900 |
30 |
840 |
12 |
13.5 |
14 |
14 |
4 |
50 |
||
|
40 |
960 |
15 |
17 |
17 |
16.5 |
|||||
|
50 |
1150 |
15 |
20.5 |
21 |
20 |
|||||
|
SW-1300 |
50 |
960 |
19 |
20 |
21 |
21 |
5 |
70 |
||
|
60 |
1150 |
20 |
24 |
25 |
25 |
|||||
|
SW-1600 |
60 |
960 |
20 |
25 |
26 |
29 |
5 |
75 |
||
|
75 |
1150 |
25 |
31 |
32 |
34 |
|||||
SW-3~SW-10
型號/ Model：SW-3~SW-10
排氣量/ Suction Capacity：0.91 m3/min~3.7 m3/min
真空度/ Suction Pressure：60 Torr
輸出功率/ Output Power：3HP~10HP
排氣量/ Suction Capacity：0.91 m3/min~3.7 m3/min
真空度/ Suction Pressure：60 Torr
輸出功率/ Output Power：3HP~10HP

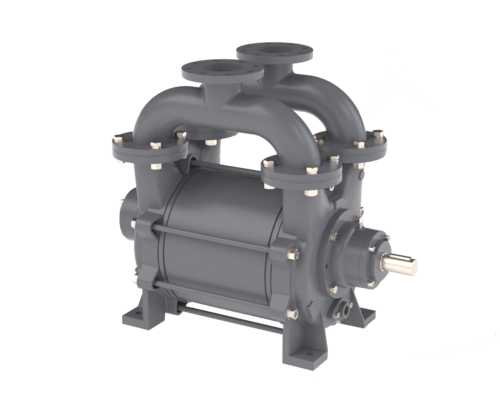

SW-15~SW-25
型號/ Model：SW-15~SW-25A
排氣量/ Suction Capacity：6.7 m3/min~9.7 m3/min
真空度/ Suction Pressure：60 Torr
輸出功率/ Output Power：15HP~25HP
排氣量/ Suction Capacity：6.7 m3/min~9.7 m3/min
真空度/ Suction Pressure：60 Torr
輸出功率/ Output Power：15HP~25HP
SW-600~SW-700
型號/ Model：SW-600~SW-700
排氣量/ Suction Capacity：11 m3/min~15 m3/min
真空度/ Suction Pressure：60 Torr
輸出功率/ Output Power：25HP~40HP
排氣量/ Suction Capacity：11 m3/min~15 m3/min
真空度/ Suction Pressure：60 Torr
輸出功率/ Output Power：25HP~40HP
SW-900~SW-1600
型號/ Model：SW-900~SW-1600
排氣量/ Suction Capacity：21 m3/min~34 m3/min
真空度/ Suction Pressure：60 Torr
輸出功率/ Output Power：50HP~75HP
排氣量/ Suction Capacity：21 m3/min~34 m3/min
真空度/ Suction Pressure：60 Torr
輸出功率/ Output Power：50HP~75HP
