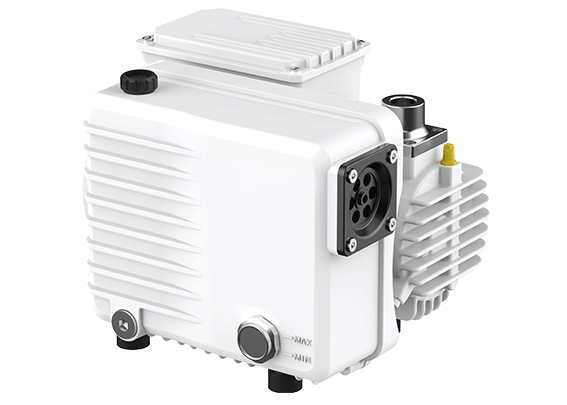

型號 /Model: RV-020C
抽氣量 /Suction Capacity: 20/24 m3/h
極限壓力 /Ultimate Pressure: ≤1 mbar
功率 /Power Rating: 0.7/0.9 kw
抽氣量 /Suction Capacity: 20/24 m3/h
極限壓力 /Ultimate Pressure: ≤1 mbar
功率 /Power Rating: 0.7/0.9 kw
規格表：
|
型號 Model |
RV-020C |
RV-022C |
RV-040C |
RV-100C |
RV-200C |
RV-300C |
|
|
抽氣速度 Suction Capacity(m3/h) |
20/24 |
22/26 |
40/48 |
100/120 |
200/240 |
245/300 |
|
|
極限壓力 Ult. Pressure (mbar) |
Without gas ballast |
/ |
≦0.3 |
≦0.3 |
≦0.3 |
≦8x10-2 |
≦8x10-2 |
|
極限全壓力Ult. Total Pressure (mbar) |
Without gas ballast I |
≦1 |
≦0.8 |
≦0.8 |
≦0.8 |
≦0.5 |
≦0.5 |
|
Without gas ballast II |
/ |
≦2.5 |
≦2 |
≦3 |
≦1.5 |
≦1.5 |
|
|
噪音 Noise Level(dB) |
≦65 |
≦61 |
≦63 |
≦65 |
≦74 |
≦77 |
|
|
電源 Power Supply |
Single/3-PH |
Single/3-PH |
3-Phase |
3-Phase |
3-Phase |
3-Phase |
|
|
功率 Power Rating (kw) |
0.75/0.9 |
1.1 |
1.3 |
2.2/3.0 |
5.5/6.6 |
7.5/9 |
|
|
轉速 Motor Speed (50/60HZ) rpm |
2880/3450 |
1440/1720 |
1440/1720 |
1440/1720 |
1440/1720 |
1440/1720 |
|
|
環境溫度 Ambient temperature(℃) |
10-40 |
10-40 |
10-40 |
10-40 |
10-40 |
10-40 |
|
|
油量Oil Capacity (L) |
0.45 |
1 |
2.5 |
2.5 |
6.5 |
8 |
|
|
防護等級 Level of Protection |
IP54 |
IP54 |
IP54 |
IP54 |
IP54 |
IP54 |
|
|
吸吹口 Intake and Exhaust |
G3/4" |
G3/4" |
G1 1/4" |
G1 1/4" |
G2" |
G2" |
|
|
重量 Weight (Kg) |
19.5 |
30 |
39.2 |
72 |
164 |
215 |
|
|
尺寸(mm) Dimension(L*W*H) |
317*249*219 |
496*268*248 |
555*304*268 |
703*406*286 |
932*533*412 |
1035*540*434 |
|
Good
performance
The precise, integrated cylinder body design and proven vane technology ensure
higher reliability and stability.
Clean
and environmentally friendly
A high-quality oil mist filtration system effectively removes oil mist to
prevent environmental contamination.
A unique anti-backflow structure protects the vacuum system from pump oil
contamination after shutdown, while fluororubber seals improve corrosion
resistance and solve oil leakage issues.
Long-term
protection
The multi-stage gas ballast design meets different customers’ vacuum level
requirements and water vapor handling needs, enabling long-term stable
operation of the product.
Excellent
heat dissipation
The oil circulation air-cooling structure eliminates the need for an external
water tank, reducing system installation and maintenance costs.
The
RV series vacuum pumps are easy to maintain and convenient to use.With a multi-stage gas ballast and dust filtration capability, they offer
strong water vapor and dust handling performance and are widely used in fields
such as food packaging, negative pressure pump stations, cold chain
transportation, vacuum leak detection, and vacuum heat treatment.
