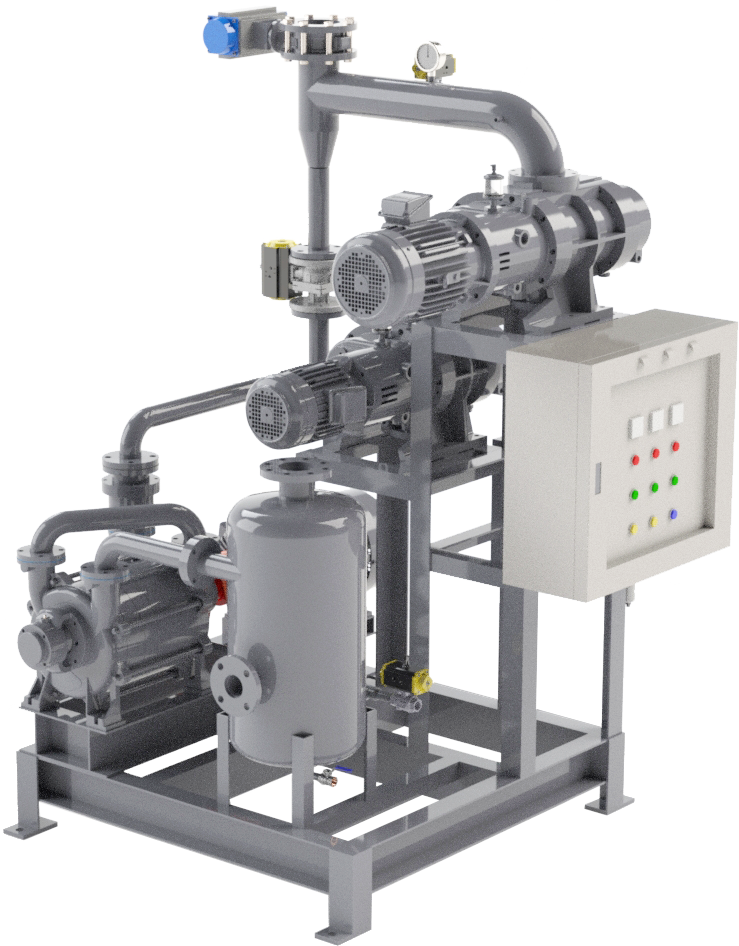

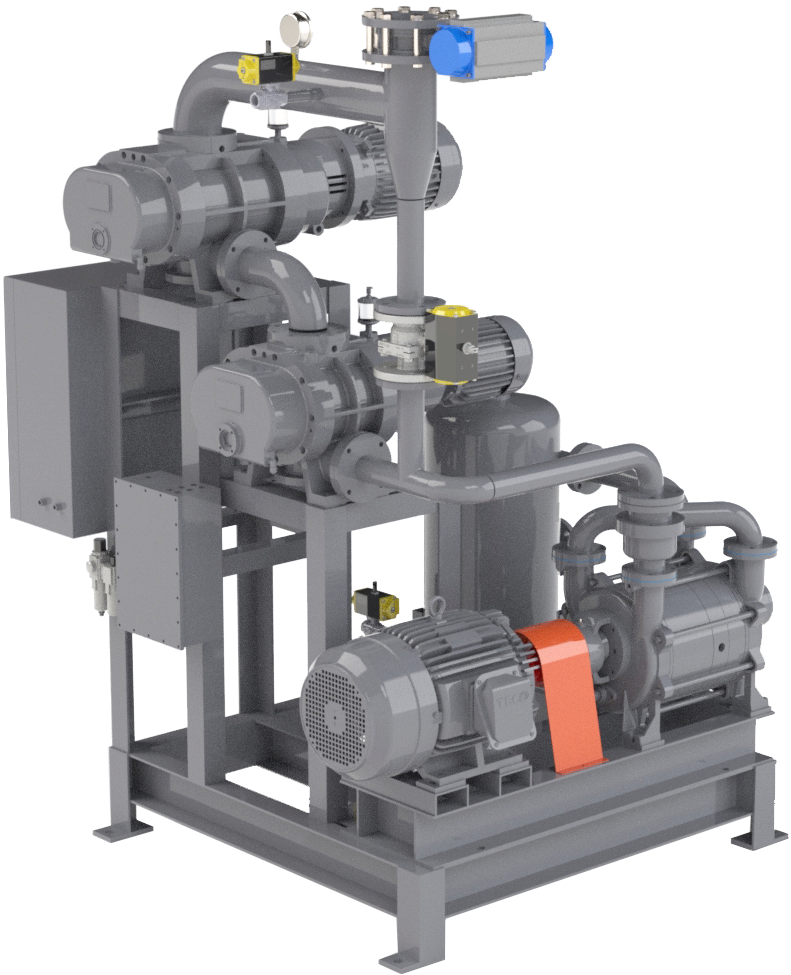

The SML-4 vacuum system consists of two mechanical booster pumps and one liquid ring vacuum pump, providing high pumping speed and stable operation from rough to medium-high vacuum ranges, with a final vacuum of up to 0.2 Torr (0.03 kPa[abs]).
The system is equipped with key control components such as vacuum gauges, vacuum switches, relief valves, and pneumatic vacuum valves, offering advantages including high ultimate vacuum, high reliability, reduced evacuation time, energy savings, lower equipment investment, compact footprint, and easy operation, making it an ideal core medium-high vacuum exhaust solution for a wide variety of industrial processes.
The system is equipped with key control components such as vacuum gauges, vacuum switches, relief valves, and pneumatic vacuum valves, offering advantages including high ultimate vacuum, high reliability, reduced evacuation time, energy savings, lower equipment investment, compact footprint, and easy operation, making it an ideal core medium-high vacuum exhaust solution for a wide variety of industrial processes.
What are the vacuum pumping system
Vacuum pumps,oil rotary or liquid ring vacuum pumps, can pump the gas out to atmosphere, but efficiency decreases in medium-high vacuum, i.e., their pumping speed decreases rapidly. A mechanical booster with adequate gradation of the forepump is capable of achieving high pumping speed at this medium-high vacuum range. The whole pumping system with suitable vacuum switch, relief valve, pneumatic vacuum value and other necessary control devices makes control and operation procedure automatic and simplified.FORMANCE RANGES OF MECHANICAL BOOSTER VACUUM PUMP
|
型 式 Model |
排氣速度 Capacity m³/h |
最 終 壓 力 Ultimate Press.Torr |
後 段 幫 浦 Backing Pumps |
總 馬 力 Total Power HP |
口 徑 mm(in) |
|
|
Inlet |
Outlet |
|||||
|
SMB65 |
300 |
2(0.2) |
SWV-5D |
2 + 5 |
65 (2.5) |
50(2) |
|
0.2 |
SOV-5DW |
2+5 |
50(2) |
|||
|
SMB80 |
500 |
2(0.2) |
SWV-7D |
3 + 7.5 |
80 (3) |
50(2) |
|
0.2 |
SOV-5DW |
3+5 |
50(2) |
|||
|
SMB100 |
700 |
2(0.2) |
SWV-10D |
5 + 10 |
100 (4) |
50(2) |
|
0.2 |
SOV-5DW |
5+5 |
50(2) |
|||
|
0.1(0.01) |
SMB65+SWV-5D |
5+3+5 |
50(2) |
|||
|
SMB125A |
1000 |
2(0.2) |
SWV-15 |
7.5 + 15 |
125 (5) |
50(2) |
|
0.2 |
SOV-7DW |
7.5+7.5 |
50(2) |
|||
|
0.1(0.01) |
SMB80+SWV-7D |
7.5+3+7.5 |
50(2) |
|||
|
SMB125 |
1500 |
2(0.2) |
SWV-20 |
10 + 20 |
125 (5) |
50(2) |
|
0.2 |
SOV-10DW |
7.5+10 |
50(2) |
|||
|
0.1(0.01) |
SMB100+SWV-15 |
7.5+5+15 |
50(2) |
|||
|
SMB150 |
2000 |
2(0.2) |
SWV-700 |
15 + 40 |
150 (6) |
80(3) |
|
0.2 |
SOV-20DW |
10+20 |
50(2) |
|||
|
0.1(0.01) |
SMB125A+SWV-20 |
10+7.5+20 |
50(2) |
|||
|
SMB200A |
3200 |
0.1(0.01) |
SMB125A+SWV-600 |
15+7.5+30 |
200 (8) |
80(3) |
|
0.2 |
SOV-700W |
15+40 |
80(3) |
|||
|
SMB200 |
4100 |
0.1(0.01) |
SMB125+SWV-700 |
20+10+40 |
200 (8) |
80(3) |
|
0.2 |
SOV-900W |
20+40 |
100(4) |
|||
|
SMB250 |
5400 |
0.1(0.01) |
SMB150+SWV-900 |
25+10+40 |
250 (10) |
100(4) |
|
0.2 |
SOV-900W |
20+50 |
100(4) |
|||
|
SMB300A |
7500 |
0.2 |
SOV-1300W |
30+50 |
300(12) |
100(4) |
|
SMB300 |
9000 |
0.2 |
SOV-1300W |
30+60 |
300(12) |
100(4) |
˙High degree of vacuum and high quality
˙Shortened operating time
˙Saving of energy
˙Low cost for procurement
˙Compact dimensions and simplified operation
Vacuum immersion、Vacuum heat treatment、Vacuum refrigeration and drying、Vacuum forming、Vacuum metallurgy、Vacuum sterilization、Vacuum packing、Vacuum filling、Vacuum degassing、Vacuum crystallizing、Extraction, condensation、Solvent recycling、Vacuum foaming、Multiple purpose reduction of pressure source、Vacuum pumping for wet process containing moisture,fine solids and corrosive gas Scientific experiment.
